Complete SMT Line Handling Solutions
Explore our PCB loading, conveying, buffering, cleaning and production-support equipment designed for reliable SMT line integration and efficient board handling.

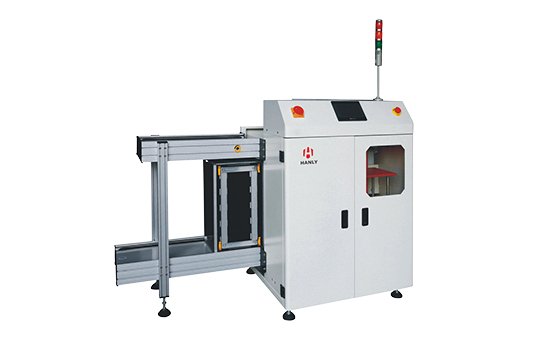

Loader & Unloader Series
Automatic PCB loading and unloading equipment for stable, synchronized SMT line operation.
- ✓ Single- and double-sided board handling
- ✓ Programmable Mitsubishi PLC control
- ✓ Touchscreen operating interface
- ✓ SMEMA interface compatible
Traverser Series
Automated PCB transfer equipment installed between parallel production lines and processing stations.
- ✓ Servo motor translating movement
- ✓ Single- or dual-lane structure
- ✓ Programmable Mitsubishi PLC
- ✓ Custom transfer distances available

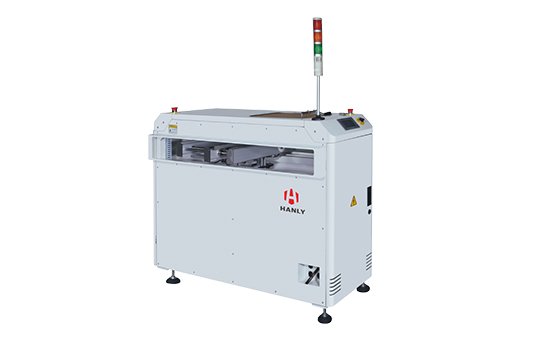

Buffer Series
Temporary PCB storage and buffering solutions for balancing production flow after inspection processes.
- ✓ NG/OK recognition functions
- ✓ Imported conveyor bearings
- ✓ Servo motor board positioning
- ✓ SMEMA production-line interface

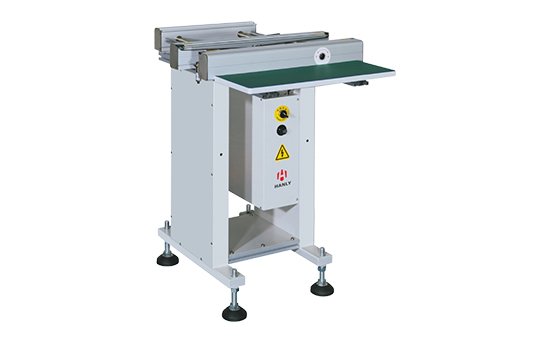

Conveyor Series
Adjustable PCB conveyors for connecting individual SMT machines and supporting visual inspection.
- ✓ Single- and dual-lane options
- ✓ Adjustable width and conveyor speed
- ✓ Belt or rail-chain configurations
- ✓ Custom conveyor lengths available
PCB Cleaning Series
Automated board-cleaning equipment for removing surface dust and contamination before the printing process.
- ✓ High-rotation cleaning brush
- ✓ Dust-removal cleaning roller
- ✓ Integrated dust collection box
- ✓ Real-time status indication

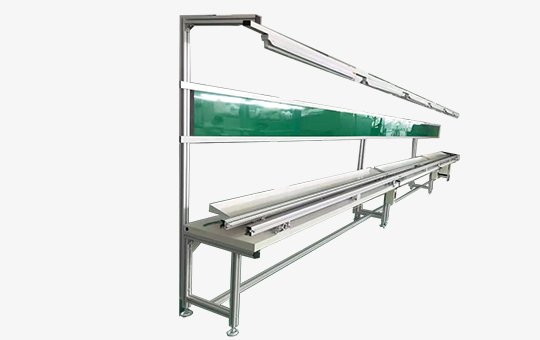

Manual Insertion Line
Modular manual insertion work lines designed for organized through-hole component assembly and DIP production.
- ✓ Adjustable PCB working width
- ✓ Aluminum main body construction
- ✓ Integrated lighting system
- ✓ Variable-speed production control

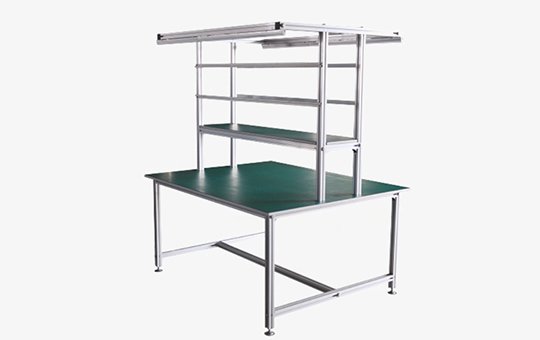

ESD Working Table
Modular antistatic workstations designed for electronics assembly, inspection and production operations.
- ✓ Modular stainless-steel structure
- ✓ Adjustable height and dimensions
- ✓ Optional multizone arrangement
- ✓ SMEMA-compatible configuration

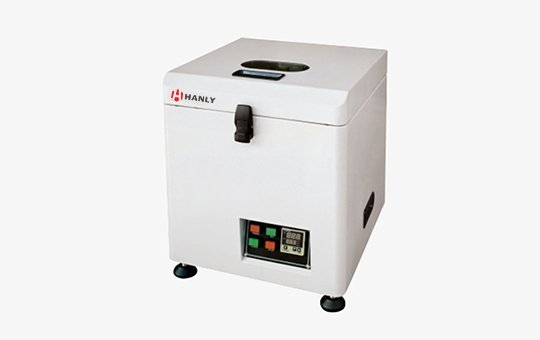

Solder Paste Mixer
Compact solder paste mixing equipment for consistent preparation before the stencil-printing process.
- ✓ Dual-speed rotation
- ✓ Micro LED digital display
- ✓ Up to two 500g containers
- ✓ Compact machine construction

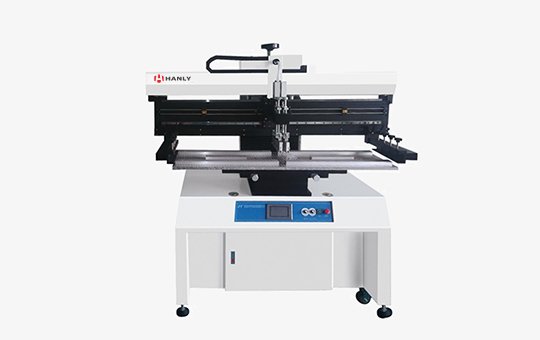

Semi-Auto Printer
Semi-automatic stencil-printing equipment designed for accurate and repeatable solder paste application.
- ✓ 320 × 700mm printing area
- ✓ ±0.02mm printing accuracy
- ✓ Adjustable 0.4–0.6MPa pressure
- ✓ Exterior or reference-pin positioning
Need a Complete PCB Handling Configuration?
Share your PCB dimensions, production capacity, line layout and upstream or downstream equipment. Our engineers will recommend a compatible PCB handling solution.
